ESAB (L-TEC) PT-121 PLASMA ONDERDELEN
PLASMA ONDERDELEN GESCHIKT VOOR ESAB (L-TEC) PT-121 |

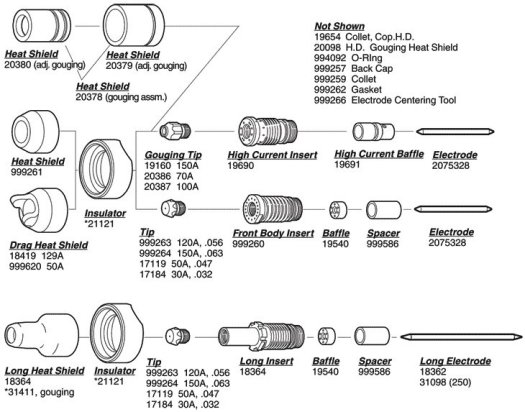

Item No: | Omschrijving | | 1 | Heat shield (adj. gouging) | | Heat shield (adj. gouging) | | Heat shield (gouging assm.) | | Not shown | Collet, Cop.H.D. | | Not shown | H.D. Gouging heat shield | | Not shown | O-Ring | | Not shown | Back cap | | Not shown | Collet | | Not shown | Gasket | | Not shown | Electrode centering tool | | 2 | Heat shield | | 3 | Insulator | | 4 | Gouging tip 70A | | Gouging tip 100A | | Gouging tip 150A | | 5 | High current insert | | 6 | High current baffle | | 7 | Electrode | | 8 | Drag heat shield 50A | | Drag heat shield 129A | | 9 | Tip 30A, .032 | | Tip 50A, .047 | | Tip 120A, .056 | | Tip 150A, .063 | | 10 | Front body insert | | 11 | Baffle | | 12 | Spacer | | 13 | Electrode | | 14 | Long heat shield | | Long heat shield, gouging | | 15 | Insulator | | 16 | Tip 30A, .032 | | Tip 50A, .047 | | Tip 150A, .063 | | Tip 150A, .063 | | 17 | Long insert | | 18 | Baffle | | 19 | Spacer | | 20 | Long electrode | | Long electrode |
|
|
|
